DOT Inspections: Minnesota & Federal Annual Truck Inspections

A DOT inspection doesn't have to mean taking trucks out of service and driving them somewhere else. Neuman Truck Service does annual inspections at your yard or lot. Our mechanics are qualified to perform both Minnesota commercial vehicle inspections and federal annual inspections. We can check tractors, straight trucks and trailers in the same visit. That saves a lot of driving back and forth.

The biggest advantage of a mobile inspection shows when something fails. A thin brake lining, a dead marker lamp that needs electrical repair or a chafed air line doesn't have to wait for another appointment. The tech gives you an estimate and, with your approval, fixes it right there. Then they finish the inspection, and the unit goes back to work with current paperwork.

What a DOT Inspection Covers

Annual inspections follow the minimum standards in appendix A to 49 CFR Part 396. These are the main systems:

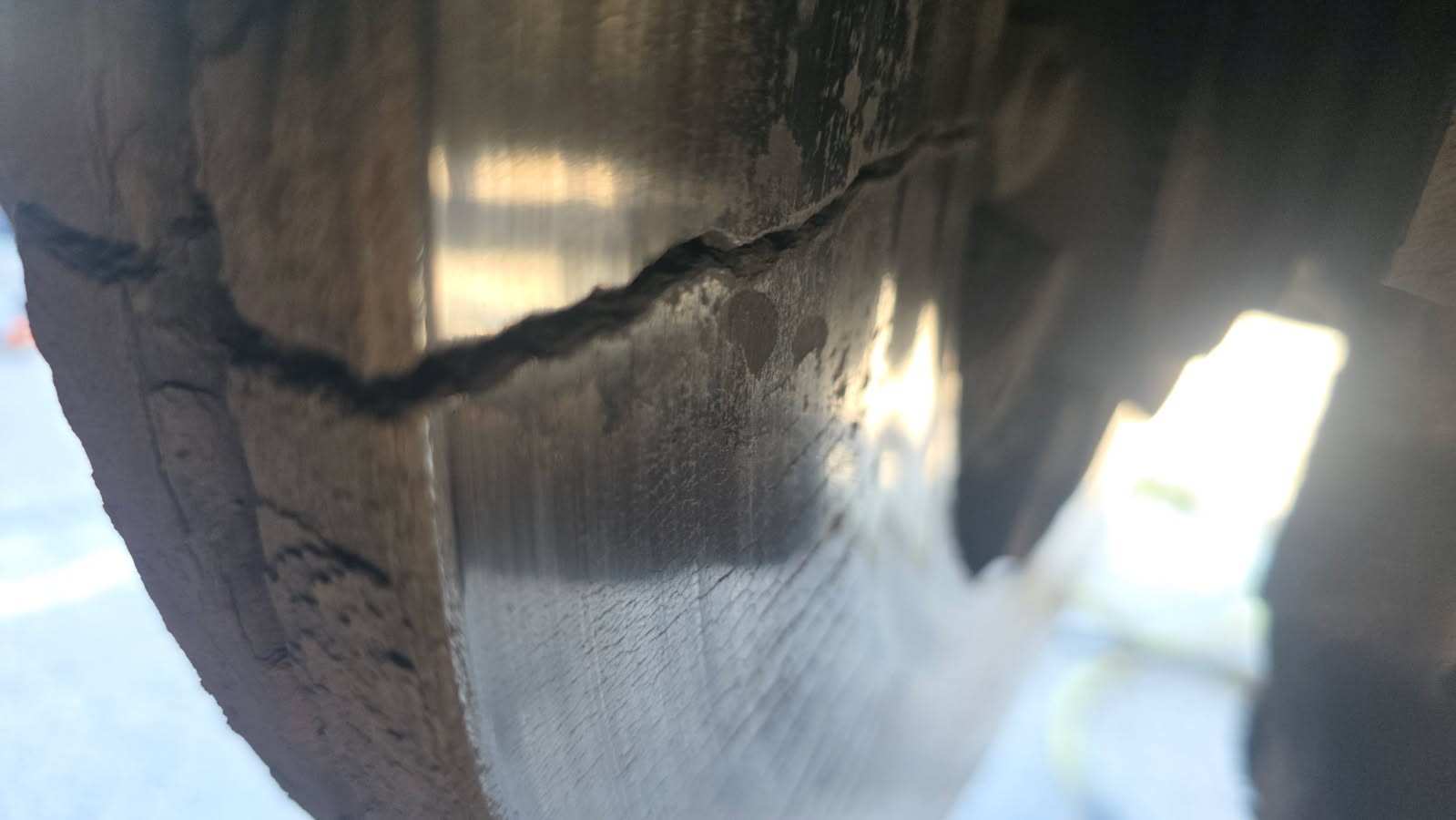

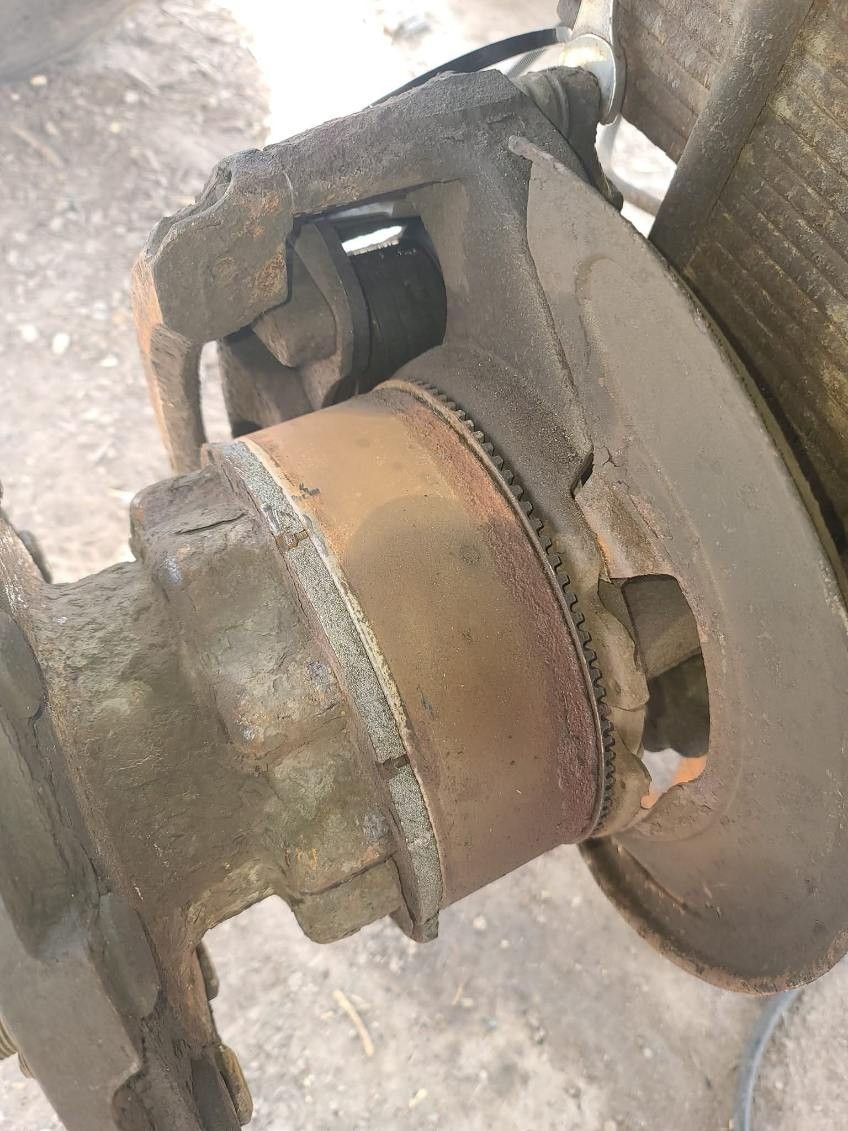

• Brake system: Pushrod stroke and adjustment, linings and drums, chambers, hoses and tubing, air leaks, the compressor, low air warning and the tractor protection system.
• Coupling devices: Fifth wheel mounting, locking jaws and release, kingpin and upper coupler on the trailer, and safety chains or pintle hooks on units that use them.
• Steering: Steering wheel lash, the steering gear and its mounting, tie rods, drag links, and king pin wear.
• Suspension and frame: Leaf springs, air bags, torque rods, U-bolts and hangers, plus the frame rails and crossmembers for cracks or damage.

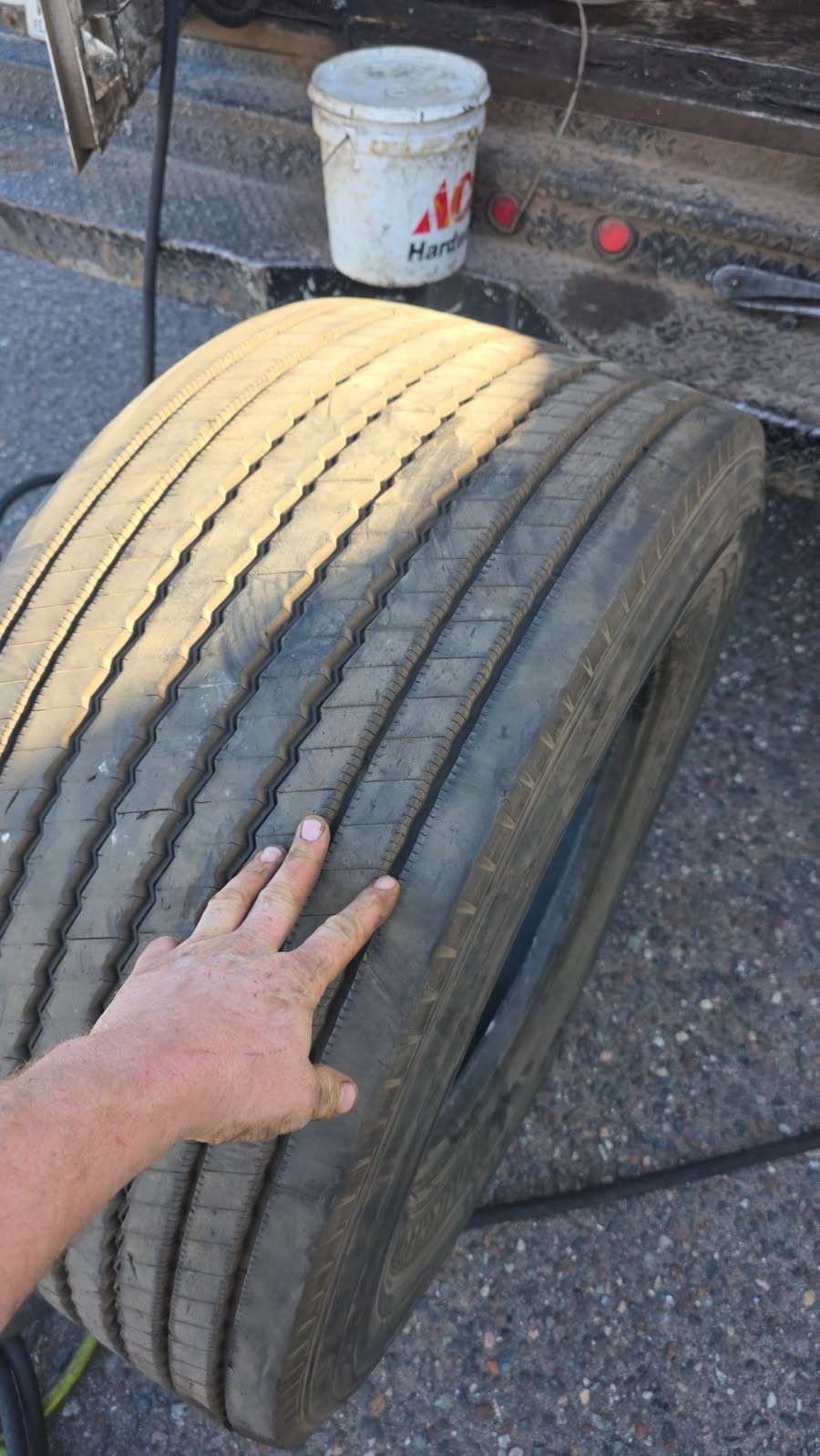

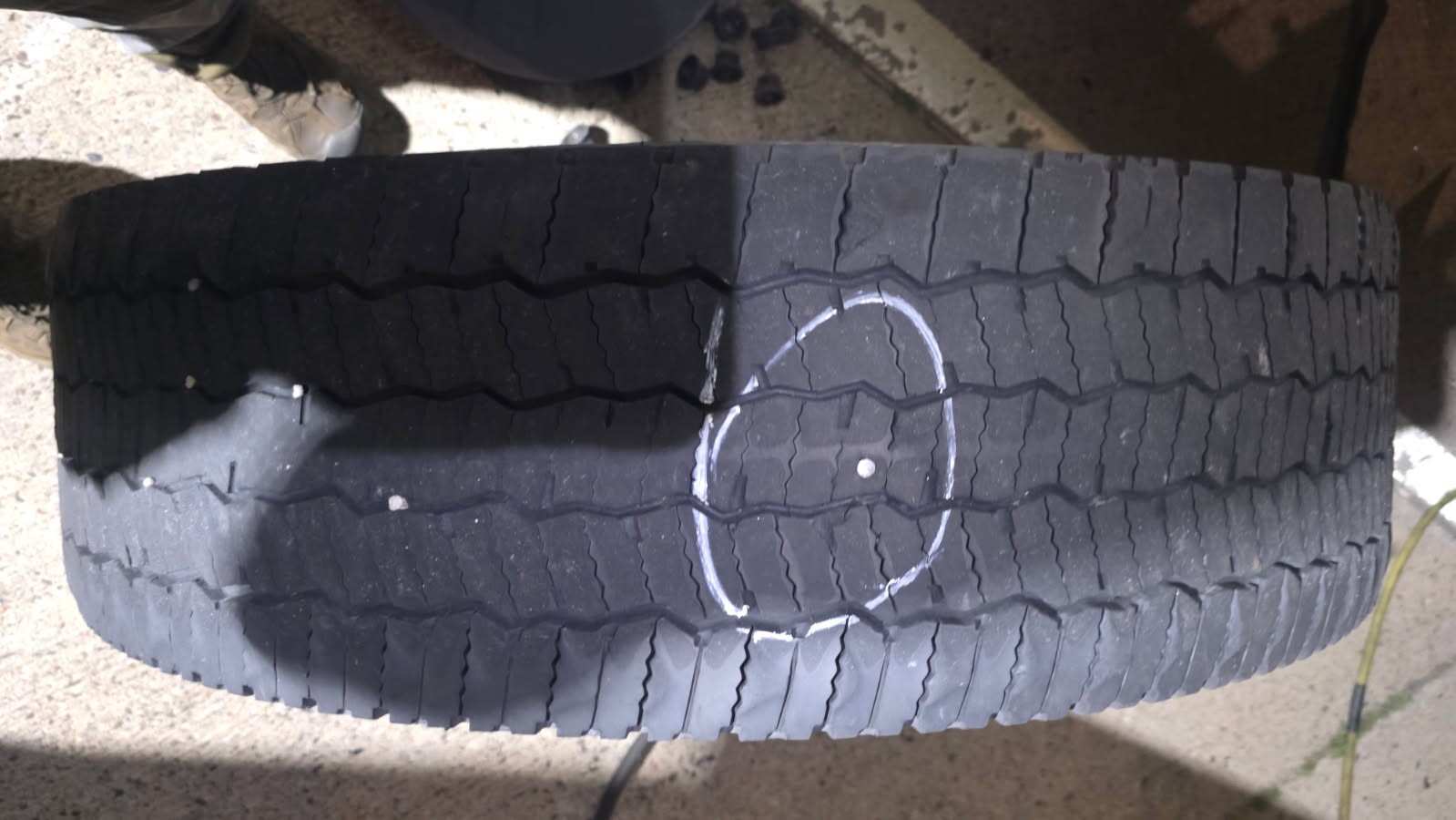

• Tires, wheels and rims: Tread depth, cuts, exposed cord and bulges, cracked wheels, and loose or missing lug nuts.
• Lighting devices: Headlamps, stop, turn, tail, clearance and marker lamps, plus the reflectors the rules require.
• Exhaust and fuel systems: Exhaust leaks forward of or under the cab, plus fuel tank mounting, leaks and caps.
• Windshield and wipers: Cracks and damage in the driver's view area, and wipers that work.

Minnesota DOT Inspection Rules

What most people call an MN DOT inspection is the Minnesota State Patrol's Mandatory Inspection Program. The State Patrol is a division of the Department of Public Safety. Under Minnesota Statutes 169.781, Minnesota-registered commercial motor vehicles have to pass an annual inspection and display a current decal. For this program, a commercial motor vehicle is a vehicle or combination over 26,000 pounds gross vehicle weight. It also includes most buses and any vehicle that carries hazardous materials in amounts that require placards. Different rules cover school buses and transit buses, and covered farm vehicles are exempt.

The decal is good for 12 months after the month shown on it. Only an inspector certified through the State Patrol program can do the inspection. The owner has to keep the inspection report for at least 14 months at the place where the vehicle is based or maintained.

The Federal Annual Inspection (49 CFR 396.17)

Federal rules apply to interstate carriers. Under 49 CFR 396.17, every commercial motor vehicle has to pass a periodic inspection at least once every 12 months. Each unit in a combination counts separately, including the tractor, the semitrailer, a full trailer and the converter dolly. Proof has to be on the vehicle. That can be the inspection report or a decal. The decal shows the date, who keeps the report, the vehicle's ID and a certification that it passed.

The same rule recognizes state inspection programs that meet the federal minimum. It also puts the burden on the carrier to keep every part at that standard all year, not only on inspection day. A companion rule, 396.21, says the inspector's report has to list the components the inspector checked and any that failed. The carrier keeps the report for 14 months.

How a Mobile DOT Inspection Works

Call (651) 491-4136 with the number of units, the types (tractors, straight trucks, trailers) and where they're parked. Putting several units on one visit saves the most time, especially for fleets that want every unit on the same renewal month.

At your yard, the tech inspects each unit system by system. They measure the brakes, check the coupling and walk the lights. Then they get underneath to check the frame, suspension and exhaust. The tech lists anything that doesn't meet the standard, with an estimate. If you approve the repair, the tech does it on the spot. When a unit passes, you get the report and decal paperwork, and the tech starts on the next unit.

Inspection Season, Salt and Northern Fleets

A truck that spent the winter on I-35, I-94 or US-169 shows it at inspection time. Brine works into brake chambers, slack adjuster pins, light sockets and frame crossmembers. The items that fail in April are often different from the ones that fail in October. For trucks based around Pine City or Forest Lake, a late spring annual makes sense. Once the truck is clean of salt, problems are easier to see and fix.

Fleets also do well when they pair the annual with regular fleet maintenance. If brake measurements and light checks happen at every PM, the annual becomes a formality instead of a list of surprises. When brakes do fail, we fix them under brake repair during the same visit. Worn tires go to truck tire repair.

How Much Does a DOT Inspection Cost?

The inspection price depends on how many units you have and what kind they are. A tractor takes longer than a trailer. Travel is a factor, and so is the number of units on one visit. Repairs are the bigger variable. A unit that passes clean costs far less than one that needs brakes, lights and a new air line before it can pass.

For every repair the inspection finds, you get an estimate before any work starts. You decide what we fix. Repairs carry a 12-month warranty, and you can pay by credit or debit card.

Where We Provide DOT Inspections

DOT Inspections is available 24/7 from our Pine City base to every town below, across Minnesota and northwest Wisconsin. Pick your area for local highways, fleets and contacts.
