Truck Electrical Repair & Diagnostics, On-Site 24/7

Truck electrical repair is mostly detective work. The tech looks for the one corroded pin or rubbed-through wire behind a no-start, a dead marker light or a dash full of warnings. Neuman Truck Service does that diagnosis on-site, at any hour. We bring a meter, the wiring diagram and the patience to follow a circuit to its end instead of throwing parts at it.

Customers mention that patience in their reviews. One review describes a 9 PM no-start call. The tech showed up within the hour and traced an electrical fault until 2 AM, then returned in the morning to finish. Not every job runs that long. Electrical faults don't care what time it is, though, and we'll stay with it until we find the cause.

Electrical Problems We Fix On-Site

We work on 12-volt systems in tractors, straight trucks and trailers, from the battery box back to the last marker lamp.

• Batteries and cables: We load test the whole bank and replace weak batteries as a set when needed. We also fix corroded terminals, cables and ground straps.
• Alternators and charging: Low or no charge, overcharging and voltage drop in the charge circuit. Sometimes the alternator is fine and the problem is a bad ground or a loose stud.
• Starters and cranking circuits: Slow cranking, a click and nothing, or a starter that stays engaged. We check the starter, the solenoid, the relay and the cables that feed them.
• Wiring harnesses: We repair chafed, pinched or corroded harness sections with sealed splices and proper loom. Then we reroute the harness away from whatever wore through it.
• Trailer lights and 7-way plugs: Dead stop, turn and marker lamps, corroded 7-way sockets and pigtails, and broken trailer main harnesses. We can also convert lamps to LED on request.

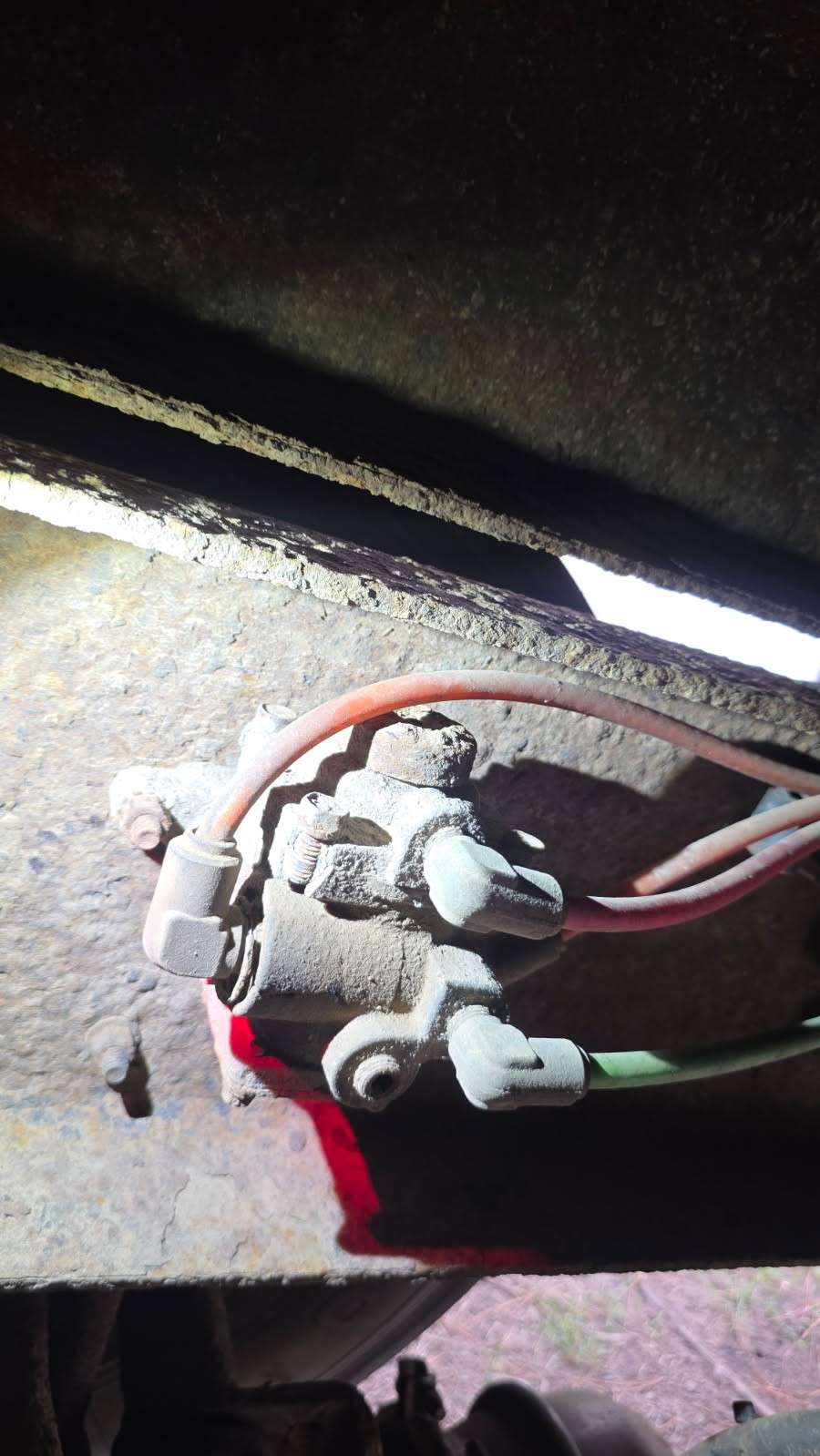

• Sensors and datalink faults: Sensor circuits, connectors and J1939 datalink problems that set codes or drop gauges. We trace them with the wiring diagram.
• Engine heater and accessory circuits: Block heater cords and elements, mirror heaters, fuel heaters and other cold-weather circuits that tend to fail when you need them most.

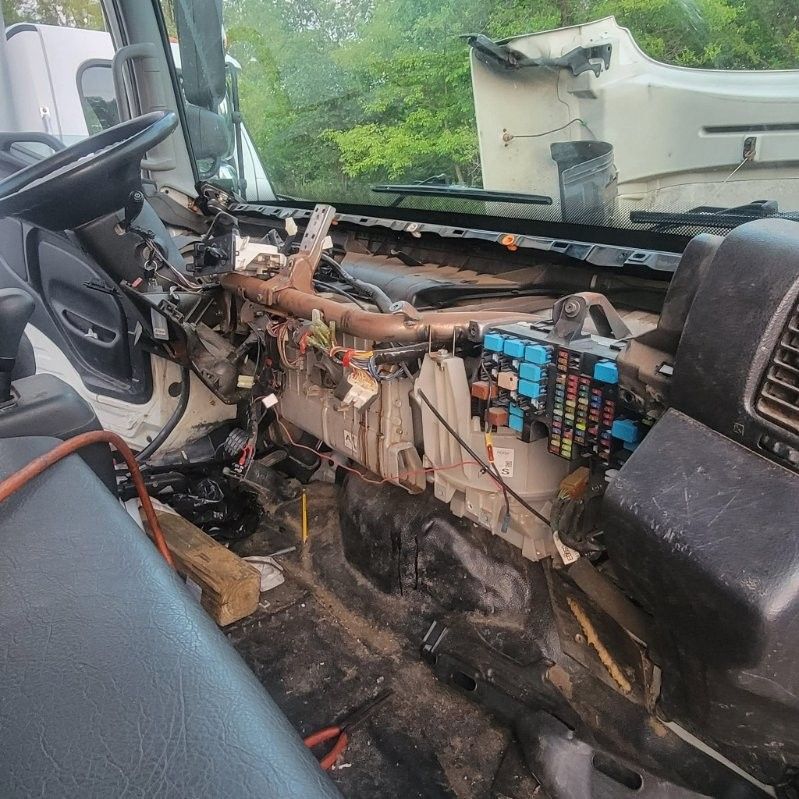

• Lighting and switches: Headlights, clearance lamps, work lights, beacons, and the switches, relays and fuses that run them.

How Truck Electrical Diagnosis Works

Call (651) 491-4136. Tell us what quit, when it started and what changed. That could be new lights, a recent repair, a pressure wash or a hard freeze. That history often points straight at the circuit.

On-site, the tech checks the basics first: battery state, cable ends, main grounds and fuses. Then the tech tests voltage drop under load and checks connectors for green corrosion and backed-out pins. If a sensor or module is part of the problem, the tech pulls codes. After the tech finds the fault, you get the estimate. Then comes the repair, and a test with the circuit under the same load it will see on the road.

Salt, Brine and Cold Starts: Why Electrical Fails Up Here

Minnesota winters eat wiring. In the 2025-26 season, crews spread 190,758 tons of salt on state highways, according to MnDOT's winter maintenance report. They also spread more than 16 million gallons of brine. That mix reaches every connector, ground strap and 7-way socket on a truck that runs I-35, I-94 or I-694. Once it gets inside a connector, it keeps corroding long after the roads are dry.

Cold makes it worse, because batteries lose cranking power as temperatures drop. A cold diesel also needs more power to crank, so a bank that was weak in October leaves you stranded the first sub-zero morning. A corroded ground that didn't matter in summer can be the difference between starting and not. Fall is the time to load test batteries and clean grounds, on a fleet lot in St. Paul or a lot near Cloquet. Federal rules in 49 CFR 393.28 also require wiring to be installed and maintained to the SAE standard. A harness patched with twist connectors and tape is a rules problem as well as a reliability problem.

How Much Does Truck Electrical Repair Cost?

Diagnostic time is the biggest variable. The tech finds a dead battery or a broken 7-way pigtail in minutes. An intermittent short that only appears over bumps, or a datalink fault across several modules, can take hours of testing. Parts, travel and after-hours calls also add to the cost.

Before any repair, the tech tells you what they found and what the fix will cost. You decide with the numbers in front of you. The repair carries a 12-month warranty, and you can pay by credit or debit card.

Electrical Faults That Look Like Something Else

A lot of problems that seem mechanical start in the wiring. Low voltage can trigger engine derates and odd gauge behavior. A NOx sensor or DEF heater circuit with a corroded connector can set aftertreatment codes that look like a failed part. That's why every aftertreatment and DPF repair diagnosis includes electrical checks. A blower or A/C clutch that won't work is often a relay or a pressure switch, which we cover under truck A/C repair.

If the truck won't start at all and you're stuck, that's an emergency truck repair call. On trailers, we usually fix lighting faults along with other trailer repair items. When the fault involves sensors, harness work on the engine side is part of diesel engine repair.

Where We Provide Truck Electrical Repair

Truck Electrical Repair is available 24/7 from our Pine City base to every town below, across Minnesota and northwest Wisconsin. Pick your area for local highways, fleets and contacts.
